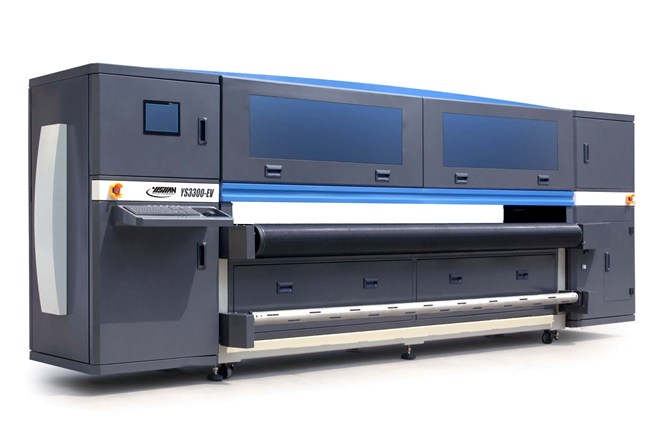

Product Name:Multifunction UV flatbed and roll to roll printer

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 53000.00-61000.00 /Set
Shipping Terms:
1
Shippment Port:
Shenzhen,China
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets per Week
Delivery Time:
20 days after deposit
Packaging:
Seaworthy solid wooden packaging, Inner vacuum package

Detailed Product Description:

TECHNICAL SPECIFICATIONS



Model No.: YS3300-GV

Print head: Adopt Konica printheads

Number Of Printheads : 4/5/6/7/ (depends on configuration)

Colors : C M Y K

C M Y K +W

C M Y K +V(Vanish)

C M Y K Lc Lm

C M Y K Lc Lm +W

C M Y K Lc Lm +W+V(Vanish)

2 x C M Y K

Resolution:960x1440dpi; 960x1400dpi, 1440x2160dpi

Print Speed: With the speed up to 30sq.m/hr (6 pass quality mode )

Max. Printing Size:130in (3.30m) x no limited

Max. Media Thickness: 55mm (2.2in)

Printing Media: All flat media such as Glass, Acrylic (Plexiglass)

Tiles, Steel, PVC, Wood, KT board and etc,and roll to roll materials

Dimension: 5.8m x 1.10m x 1.90m (L x W x H) 228in x 45in x 48in

Machine Net Weight: 2600kg (5733lbs)

Warranty : One Year Printer Warranty (exclude ink way system, UV bulb and print heads)



FEATURES & CHARACTERICS



• USA designed, Patent-pending machine frame and flat bed table

• Industry first flatbed table, tolerance less than 0.15mm for highest quality output

• Choose from Konica or Spectra series printheads

• Flexible printhead configuration: 2xCMYK, CMYKLcLm, CMYKLcLmWV

• Unparalleled print quality with resolution up to 14402160 DPI

• Most vibrant color and largest color gamut of any UV digital ink

• Includes Yishan controller software

• Support most RIP manufactures (ONYX, Photoprint, Wasatch, Caldera, etc.)

• Print on popular rigid substrate up to 100mm (4.0 inches) including Glass,Gatorfoam, Foamboard,

  PVC, KT Board, Dibond, Painted Aluminum

• The industry first secondary White ink circulation tank to avoid white ink clogging the printhead

• Blower can operate in vacuum hold down or reverse blow to facilitate material   handling

• Multiple zoned flatbed table for precise vacuum control



THE USAGE OF UV FLATBED PRINTER



• Suitable for Ads, and industrial fields

• 4/5/6/7/16 color to present on a colorful life

• Suitable for all flat and roll to roll materials
