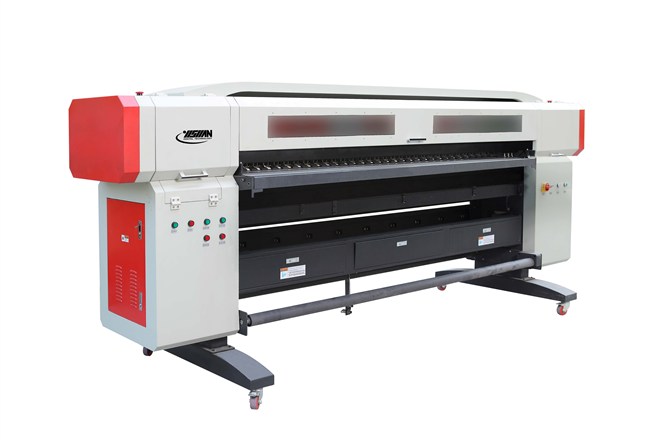

Product Name:2.5m roll to roll digital printer

Product Details:
Model:
YS2500-GJ
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 36000.00-42000.00 /Set
Shipping Terms:
1
Shippment Port:
Shenzhen,China
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets per Week
Delivery Time:
20 days after deposit
Packaging:
Inner is vacuum bag, outer is wooden case.

Detailed Product Description:

DETAILED PROFILE


Printing Method: Drop-on-demand piezoelectric discharge

Ink Feature: UV Curable

P/H Control: Printhead temperature and voltage are software adjustable

Dry System: Dual Mercury UV Lamp

Software Platform: Win2000, WinXP, Windows 7 (32bit)

RIP software: Innovative YISHAN Rip Software, SeeGet, Photoprint, Caldera

Accepted file Formats: All popular desktop files formats, including AL,EPS, TIFF, PDF, SVG,JPEG

Color Management: ICC based color, curves and density adjustment

Electrical Requirement: 208-230VAC, Single Phase, 50/60Hz, 30Amps Maximum

Environment Requirement: Temperature: 20-27 ºC (68-80ºF), Humidity: 40%-70%

TECHNICAL SPECIFICATIONS


Model No.: YS2500-GJ

Printhead: Konica 512MH

Number of printheads: 4/5/6/7

Colors: C M Y K+Lc Lm,varnish,white

Resolution: 960x1440dpi; 1440x2160dpi

Max. Printing Size: 2.5m x no limit (100in x no limited)

MaxMedia Thickness :1.6in (40mm)

Media Type: PVC, Scrim Banner, Fabric, Mesh Banner, Adhesive vinyl, Paper, KT board etc..

Dimension: 3.80m x 1.20m x 1.65m (L x W x H)

150in x 48in x 65in (L x W x H)

Machine Net Weight: 600 kg (1215lbs)

Machine W/ Packing: 1020 kg(2250lbs)

Warranty:  One Year Printer Warranty (exclude consumables and print heads)


FEATURES & CHARACTERICS


• With Over ten-year experience YISHAN controller software built for the customer needs.

• The negative ink-supply system, which has gained the national patent of invention, ensures steady ink output

• Advanced ICC color management for reliable color quality output and proofing quality color on production level printers

• Media sender device which also has gained national patent, ensures every pass to reach the best color

• Heavy duty constructions

• With Konica 512MH customer can choose to print from high quality photo graphics mode to production quality mode graphics
